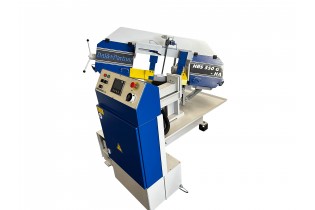

DP- Gehrungsmetallbandsäge HBS 350 G- Halbautomat
The miter band saws from Daiß + Partner in swivel frame construction are characterized by their stable, robust and easy handling. The changeover from straight to miter cuts takes a few seconds. The material to be sawn is not changed in the transport direction, so a fast and exact length measuement is possible.
Saw band measurements 3660 x 27 x 0,9 mm , optional 3660 x 34 x 1,1 mm
On enquiry
Hochwertigen Qualitätsprodukten
Alles aus einer Hand
Service-Dienstleistungen
DP-HBS350G-HA
Data sheet
- Weight
- 750 KG
- Abmessungen LxBxH
- 2000x1300x1030 mm
- Arbeitshöhe
- 650 mm
- Schnittgeschwindigkeit
- 15-105m /min stufenlos frequenzgeregelt
- Antriebsleistung
- 240/400 V 1,5 KW
- Arbeitsbereich 90 ̊
- Ø 320mm, 4-kant 300x300 mm
- Arbeitsbereich 45 ̊
- Ø 280mm, 4-kant 200x200 mm
- Arbeitsbereich 60 ̊
- Ø 200mm, 4-kant 140x140mm
- Gehrung
- Ja
- 2-Säulen
- Nein
- Doppelgehrung
- Nein
- Zustand
- Neu
- Betriebsart
- Manuell
Specific References
The miter band saws from Daiß + Partner in swivel frame construction are characterized by their stable, robust and easy handling. The changeover from straight to miter cuts takes a few seconds. The material to be sawn is not changed in the transport direction, so a fast and exact length measuement is possible.
Saw band measurements 3660 x 27 x 0,9 mm , optional 3660 x 34 x 1,1 mm
On enquiry
